Description
Rugged and reliable-Fast, accurate, versatile XRF analysis.

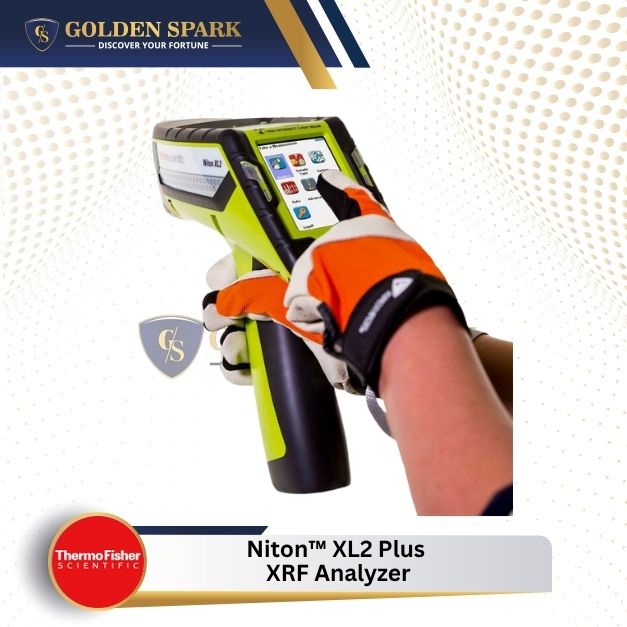

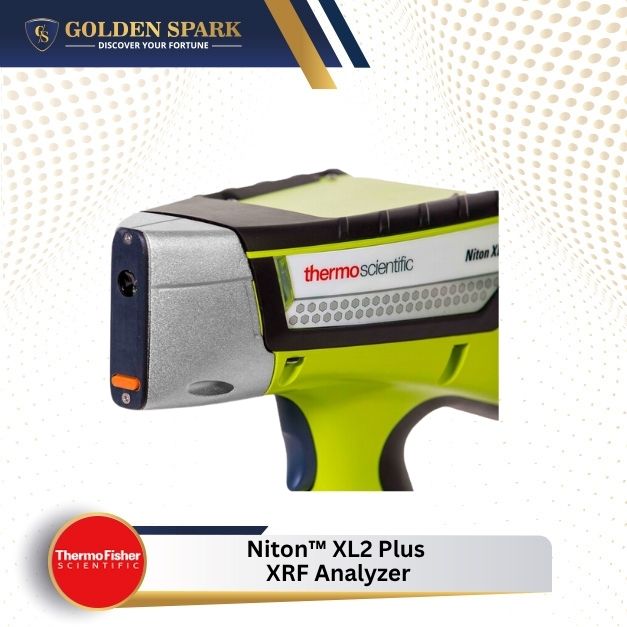

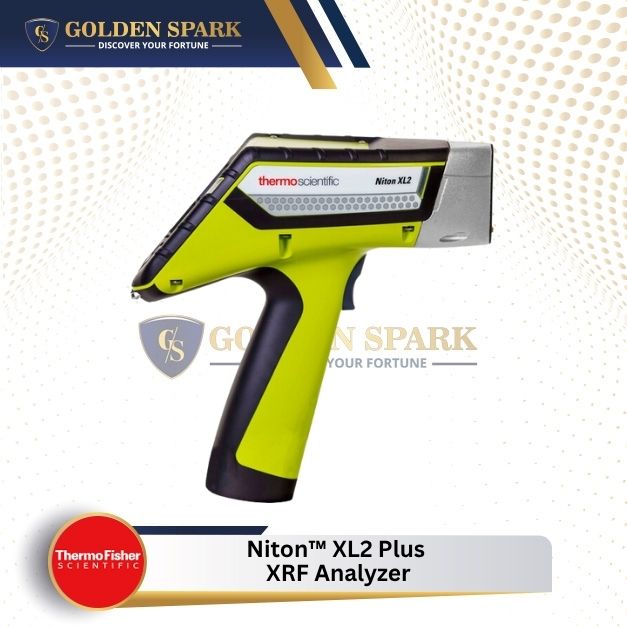

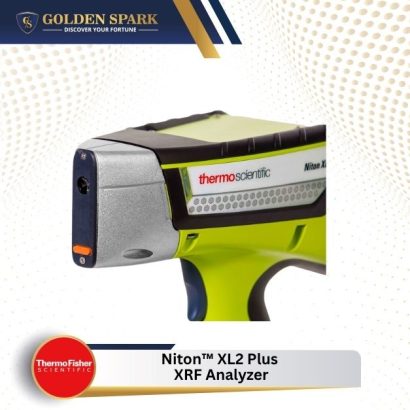

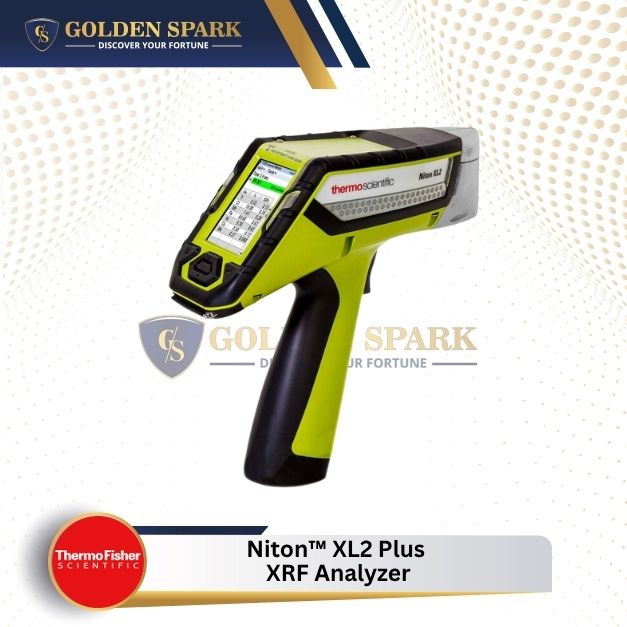

When durability, performance, and productivity are top of mind, industrial businesses rely on the Thermo Scientific™ Niton™ XL2 Plus handheld XRF analyzer. Offering superior analysis and enhanced robustness, the Niton XL2 Plus is built for the way you work. Founded on a reputation of dependability and reliability, you can count on the Niton XL2 Plus for years to come.
Applications
- Verification of metals and alloys in manufacturing
- Quality assurance testing for positive material identification
- Point-and-shoot sorting at scrap recycling operations
- Coating thickness measurements from single element layers
- Precious metal assay of bullion and jewelry
- Geochemical analysis for ore trading and grade control
- On-site heavy metal screening of polluted soils
- Lead in paint inspection of industrial facilities
- Screening of hazardous substances in consumer goods
Product Specifications
| Specification | Details |
| Weight | 3.4 lbs with battery (1.53 kg) |
| Dimensions | 10 x 10.8 x 3.9 in (25.6 x 27.5 x 10 cm) |
| X-Ray Source | X-Ray Tube: Ag anode (6–45kV, 1–200uA, 2W max) Dynamically adjustable current for optimal sensitivity on every analysis |
| Detector | Silicon drift detector (SDD) Detector ProGuard protection included |
| Spot Size | 8 mm collimation |
| Analytical Range | Mg–U |
| Calibration Modes | General Metals, Precious Metals, Coatings, Mining, Soils, Electronic Alloys, Plastics, Industrial Lead in Paint, Lead in Paint Products |
| Libraries | Default alloy libraries based on SAE, AISI, ASTM, AA standards Users may create and edit libraries |
| System Check | Built-in standardization via automatic system check |
| IP Rating | IP54 (splash and dust proof) |
| Operating Environment | Temperature: -10°C to 50°C Humidity: 0% to 80% relative humidity non-condensing |
| Display | Fixed angle, color, resistive touchscreen display |
| Power | 7.4V lithium-ion battery, or 12V DC, 3A, 36W power supply Hot swap functionality keeps analyzer powered during battery replacements |
| Camera | Integrated CCD micro camera for locating and recording measurement positions |
| Global Positioning System | Optional external GPS (via Bluetooth) |
| Bluetooth | Supports print functionality, external GPS connectivity and barcode reader |
| Memory / Data Storage | 64 MB internal system memory / 128 MB internal user storage Stores approx. 10,000 readings with spectra (fewer if images are saved) |
| Data Entry | Touchscreen keyboard User customizable data entry Optional wireless remote barcode reader |
| Data Transfer | USB, Bluetooth, and RS-232 serial communication |
| Operating System | Proprietary |
| Support Software | Niton Data Transfer (NDT) PC software |
| Security | Password-protected user security |
| Languages | English, Chinese, Spanish, Portuguese, Russian, Japanese, German, Korean, French, Italian, Czech |
| Standard Accessories | Locking shielded carrying case Two (2) lithium-ion battery packs One (1) 110/220 VAC battery charger/AC adaptor Check samples Belt holster Safety lanyard PC connection cables (USB and RS-232) |
| Optional Accessories | Thermo Scientific™ portable test stand Thermo Scientific™ mobile test stand Thermo Scientific™ field mate test stand Thermo Scientific™ soil guard |
| Compliance | CE, RoHS, FCC, Industry Canada, Safety to IEC 61010-1, UL 61010-1 |
| Licensing / Registration | Varies by region. Contact your local distributor. |
